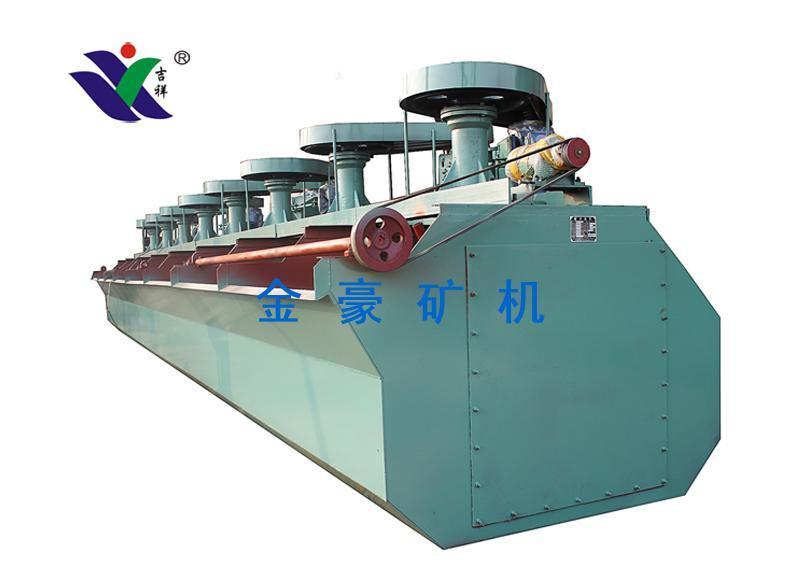

Flotation Machine

ProductDetailsTheproductabsorbsairandorepulpbyitselfandhasforwardtroughwhichfacilitatesforwardreturnoffoam;itadoptsdouble-vaneimpellerwhichcanmixcoarsesandonthebottomwellanddoesn’tneedfoampump,theimpe

关键词：

所属分类：

产品咨询：

分类列表

PRODUCTS LIST

产品描述
Remarks
Picture&Video
Parameters
Principle

- Commodity name: Flotation Machine
- Commodity ID: 1113782222050709504
ProductDetailsTheproductabsorbsairandorepulpbyitselfandhasforwardtroughwhichfacilitatesforwardreturnoffoam;itadoptsdouble-vaneimpellerwhichcanmixcoarsesandonthebottomwellanddoesn’tneedfoampump,theimpe

Product Details

The product absorbs air and ore pulp by itself and has forward trough which facilitates forward return of foam; it adopts double-vane impeller which can mix coarse sand on the bottom well and doesn’t need foam pump, the impeller cover plate has long life, and the ore pulp makes upper and lower circulation in a fixed mode, benefiting the suspension of coarse grain minerals.
1. Please mark out the model, quantity and flotation flow while ordering: ① the number of drivesystems of the foam scraper plate② concentrate flowing direction

2. The motor starting device is not equipped when out of factory.

3. The wedge disc is changeable as required.

The main technical parameters

Model	Effective volume（m³）	Processing capacity（m³/min）	Impeller diameter（mm）	Impeller speed（r/min）	Power of stirring motor（kw）	Scraper motor power（kw）	Unit trough weight（kg）
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	470
SF-0.7	0.7	0.3-1.0	350	336	3	1.1	970
SF-1.2	1.2	0.6-1.2	450	312	5.5	1.1	1400
SF-2.8	2.8	1.5-3.5	550	280	11	1.5	2120
SF-4	4	2.0-4	650	235	15	1.5	2600
SF-8	8	4.0-8	760	191	30	1.5	4292
SF-16	16	5.0-16	850	169-193	45	1.5	7415
SF-20	20	5.0-20	730	186	30×2	1.5	9823
