ZC Series Disk Feeder
关键词：
所属分类：
- 产品描述
- Remarks
- Picture&Video
- Parameters
- Principle
-
- Commodity name: ZC Series Disk Feeder
- Commodity ID: 1113782256511111168
ProductdetailsZCseriesdiskfeederisaneasyinstallationmachinethatissuitableforfeedingmineralpowderwithsizesbelow20mm.Therearetwotypesofthismachine,namely,opentypeandclosedtype.Withthesetypes(openandclos

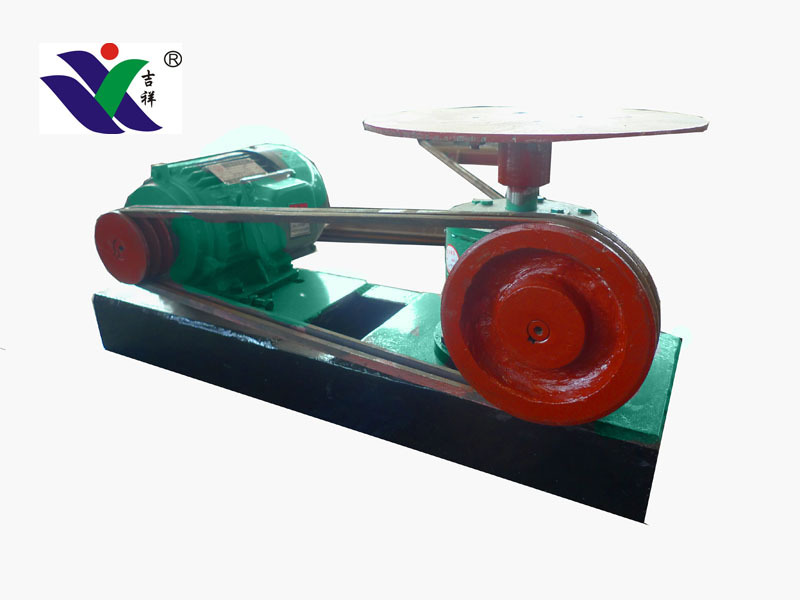

Product detailsZC series disk feeder is an easy installation machine that is suitable for feeding mineral powder with sizes below 20mm.There are two types of this machine, namely, open type and closed type. With these types(open and closed) of machines, feeding quantity can be controlled properly by adjusting the position of scraper. The open type is suitable for dry and soft materials feeding, while the closed type is suitable for sticky ores with much mud and moisture feeding. -
-
Technical Data Sheet of ZC Series Disk Feeder
Model
Disk Diameter
(mm)
Disk Rotation Speed
(r/min)
Max Feed
Particle Size
(mm)
Feed Capacity
(t/h)
Motor Model
Motor Power
(kw)
Weight
(kg)
ZC800
800
9
30
≤8.0
Y90L-6
1.1
195
ZC1000
1000
9
30
≤12
Y100L-6
1.5
263
ZC1200
1200
7
40
≤18
Y100L-6
1.5
500
ZC1500
1500
7
40
≤22
Y132S-6
3
755
