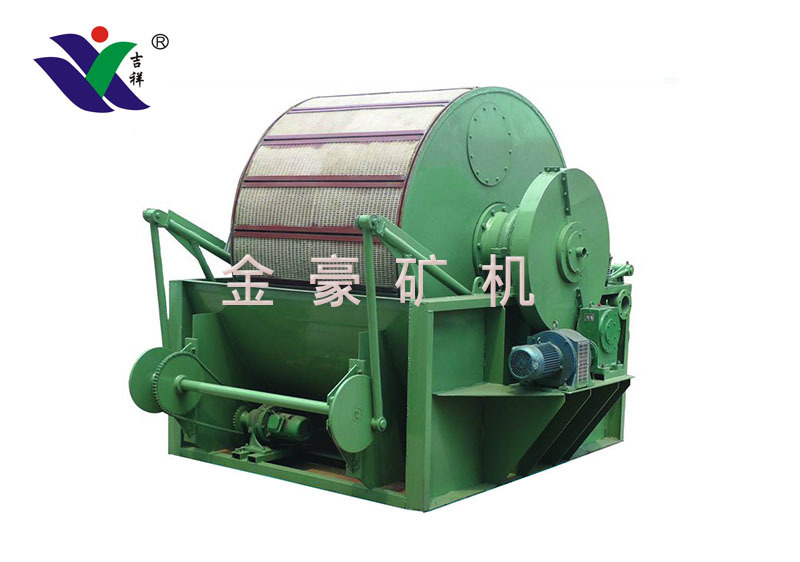

- Commodity name: GW Cylinder External Colation Filter
- Commodity ID: 1113782208318558208
ProductDetailsSimplestructure,lowprice,convenientuse,lesswearingparts,lowmaintenance.

Product Details

Simple structure, low price, convenient use, less wearing parts, low maintenance.
Remark: It needs to match air exhaust system and gas-water separation system (automatic drainage filtrate cylinder), and the matched products (vacuum pump, air extractor, pressure water tank system) need independent ordering.

The main technical parameters

Specification and model	Filtering area (m²)	Cylinder speed (r/min)	Stirring times (times/min)	Maximum production capacity (t/h)	Speed changer/reducer		Motor power		Overall dimensions(mm) (L×W×H)	Gross weightkg)
Specification and model	Filtering area (m²)	Cylinder speed (r/min)	Stirring times (times/min)	Maximum production capacity (t/h)	Cylinder	Stirrer	Cylinder	Stirrer	Overall dimensions(mm) (L×W×H)	Gross weightkg)
GW-3	3	0.066～0.662	25	0.3～1.2	YCT132-4A	XWD4-59-0.8	1.1	0.8	2231×2450×1850	2500
GW-5	5	0.066～0.662	25	0.5～2	YCT132-4A	XWD4-59-0.8	1.1	0.8	2531×2450×1850	2756
GW-8	8	0.13～0.26	23	0.7～3.8	YCT160-4B	XWD4-59-0.8	3	0.8	3843×2892×2370	5000
GW-10	10	0.13～0.26	23	1～4	YCT160-4B	XWD4-59-0.8	3	0.8	3443×2892×5200	5200
GW-12	12	0.3～0.2	23	1～4.8	YCT160-4B	XWD4-59-0.8	3	0.8	3843×2892×5910	5910
GW-20	20	0.14～0.54	23	3～8	YCT200-4A	XWD5-59-1.5	5.5	1.5	4480×4085×2890	10600
