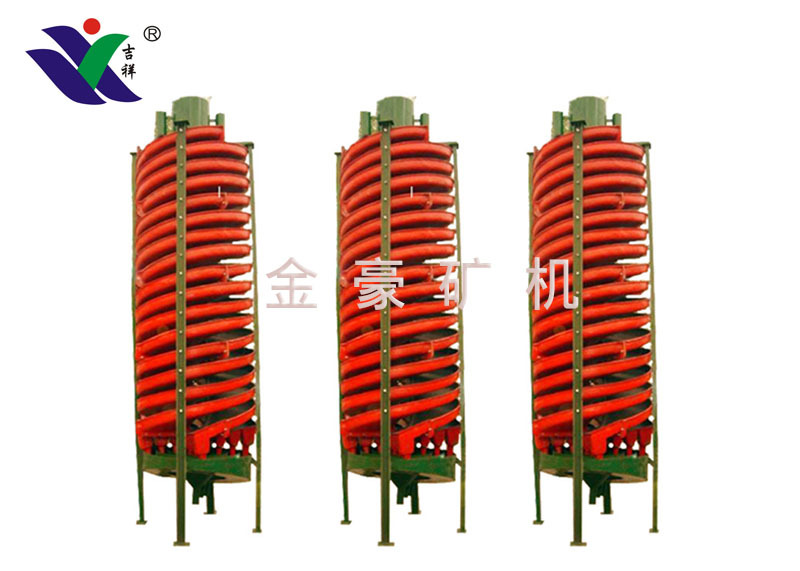

- Commodity name: Spiral Chute
- Commodity ID: 1113782297623678976
ProductDetailsUsedforseparatingiron,tin,tungsten,goldoreandcoalminewiththegranularityof0.3~0.02mmandothermetalandnonmetalmineralswithsufficientspecificweightdifference.

Product Details

Used for separating iron, tin, tungsten, gold ore and coal mine with the granularity of 0.3~0.02mm and other metal and nonmetal minerals with sufficient specific weight difference.

The main technical parameters

Model		5LL-2000	5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
Outside diameter(mm)		2000	1500	1200	900	600	400
Screw pitch(mm)		1200	540,720	720,540	540	360	240
The largest number of installation spiral heads of each machine		3	4-2	4-2	4-2	2	2
Feeding granularity(mm)		2.00-0.04	0.3-0.02	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding concentration(%)		30-55	25-55	25-55	25-55	25-55	25-55
Production capacity(t/h)		10-7	8-6	4-6	2-3	0.8-1.2	0.15-0.2
Overall dimensions	Length (mm)	2120	1560	1360	1060	700	460
	Width (mm)	2120	1560	1360	1060	700	460
	Height (mm)	5600	5230	5230	4000	2600	1700
	Weight（kg）	900	800	600	400	150	50
