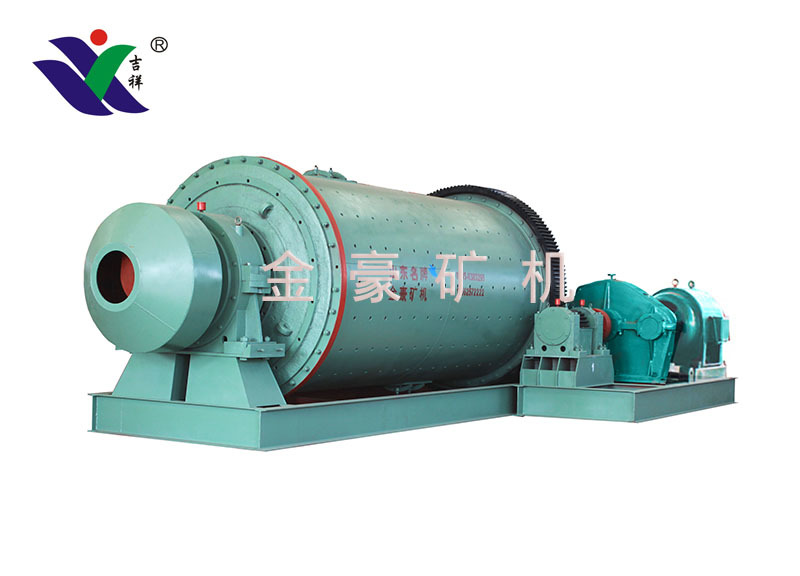

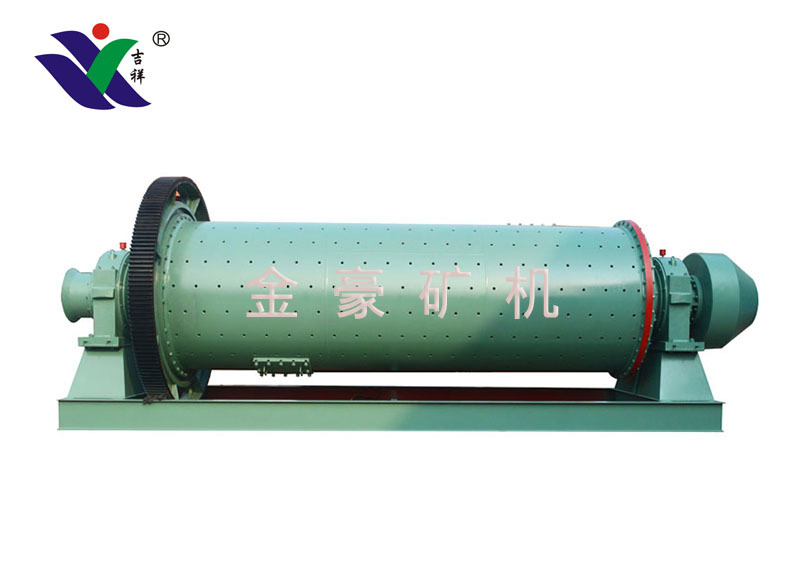

- Commodity name: GM Series Rolling Bearing Ball Mill
- Commodity ID: 1113782283321102336
ProductDetails1.Ituseslarge-diameterdoublerowself-aligningrollerbearing,reducesenergyconsumptionandiseasytostart.2.Heavycaliberinletandoutlethavelargetreatmentcapacity.3.Ithashighinstallationaccuracy,

Product Details

1. It uses large-diameter double row self-aligning roller bearing, reduces energy consumption and is easy to start.

2. Heavy caliber inlet and outlet have large treatment capacity.

3. It has high installation accuracy, simple and convenient civil engineering and installation and short cycle.

4. It adopts a drum type feeder which has balanced operation and no inertial impact, reduces halt maintenance time of the mill and improves the service efficiency of the mill.
Remark: Pay attention to the turning direction and discharging type of the ball mill. Bearing type is variable.

Technical Data sheet of GM Series Rolling Bearing Mill

Model	Specifications	Cylinder Speed （r/min）	Ball Weight （t）	Feeding Granularity （mm）	Production (t/h)	Complete set of motor		Overall Dimensions(mm) （L×W×H)	Weight （kg）
Model	Specifications	Cylinder Speed （r/min）	Ball Weight （t）	Feeding Granularity （mm）	Production (t/h)	型号	功率（kw）	Overall Dimensions(mm) （L×W×H)	Weight （kg）
GM0715	Φ750×1500	44.09	0.9	0-25	0.2-0.6	Y160M-6	7.5	3250×1200×882	2300
GM0909	Φ900×900	41.6	0. 83	0-25	0.2-0.7	Y160L-6	11	3337×1850×1400	3850
GM0912	Φ900×1200	41.6	1.1	0-25	0.3-0.9	Y160L-6	11	3843×1850×1400	4210
GM0921	Φ900×2100	41.6	1.8	0-25	0.6-1.5	Y180L-6	22	4743×1850×1400	6660
GM0933	Φ900×3300	41.6	2.8	0-25	0.9-2.3	Y225M-6	30	5943×1850×1400	7770
GM1224	Φ1200×2400	35.2	4.0	0-25	1.6-4.1	Y250M-8	30	5540×2300×1850	10020
GM1228	Φ1200×2800	35.2	4.6	0-25	1.9-4.8	Y280S-8	37	5940×2300×1850	10935
GM1232	Φ1200×3200	35.2	5.3	0-25	2.2-5.5	Y280M-8	45	6340×2300×1850	11230
GM1244	Φ1200×4400	35.2	7.3	0-25	3.0-7.5	Y315M-8	75	7540×2300×1850	13210
GM1324	Φ1300×2400	30.2	4.5	0-25	1.5-3.5	Y280S-8	37	5035×2370×1880	10210
GM1328	Φ1300×2800	30.2	5.2	0-25	2.0-4.5	Y280M-8	45	5435×2370×1880	11290
GM1334	Φ1300×3400	30.2	6.5	0-25	2.2-5.0	Y315S-8	55	6035×2370×1880	13117
GM1524	Φ1500×2400	30.7	6.5	0-25	2.8-6.5	Y315S-8	55	6830×2930×2060	15430
GM1530	Φ1500×3000	30.7	8.1	0-25	3.5-8.0	JR117-8	80	7430×2930×2060	16843
GM1533	Φ1500×3300	30.7	9	0-25	4.0-9.0	JR117-8	80	7730×2930×2060	17849
GM1536	Φ1500×3600	30.7	9.8	0-25	4.5-10.0	JR125-8	95	8030×2930×2060	18649
GM1542	Φ1500×4200	30.9	11.4	0-25	5.0-11.0	JR126-8	110	8630×2930×2060	19330
GM1545	Φ1500×4500	30.9	12.5	0-25	5.5-13.5	JR126-8	110	8930×2930×2060	20000
GM1557	Φ1500×5700	30.9	15.5	0-25	7.0-15.5	JR127-8	130	10130×2930×2060	23597
GM1563	Φ1500×6300	31.1	17.1	0-25	8.0-17.0	JR128-8	155	10730×2930×2060	24390
GM1830	Φ1830×3000	27	13.0	0-25	3.0-17.0	JR127-8	130	9525×3960×2250	29490
GM1833	Φ1830×3300	27	14.0	0-25	3.3-20.0	JR128-8	155	9925×3960×2250	30390
GM1836	Φ1830×3600	27	15.0	0-25	4.0-21.5	JR128-8	155	10125×3960×2250	31600
GM1839	Φ1830×3900	27	17.0	0-25	4.5-24.0	JR128-8	155	10525×3960×2250	32700
GM1845	Φ1830×4500	27.2	18.6	0-25	6.0-28.0	JR136-8	180	10925×3960×2250	34210
GM1851	Φ1830×5100	27.2	21	0-25	8.0-50.0	JR136-8	180	11725×3960×2250	37715
GM1860	Φ1830×6000	27.2	24.5	0-25	10.0-60.0	JR138-8	245	11336×3960×2250	41440
GM1869	Φ1830×6900	27.2	28.5	0-25	11.0-65.0	JR139-8	280	13525×3960×2250	46418
GM2121	Φ2100×2100	23.8	11.5	0-25	3.0-22.0	JR127-8	130	7775×4060×3400	38793
GM2130	Φ2100×3000	23.9	16.5	0-25	4.0-30.0	JR136-8	180	8475×4060×3400	41965
GM2136	Φ2100×3600	23.9	19.8	0-25	5.0-37.0	JR136-8	180	9225×4060×3400	44551
GM2139	Φ2100×3900	23.9	21.5	0-25	5.2-39.0	JR137-8	210	9475×4060×3400	46697
GM2145	Φ2100×4500	23.9	24.8	0-25	5.6-42.0	JR138-8	245	9975×4060×3400	49230
GM2163	Φ2100×6300	23.9	35.6	0-25	5.0-70	JR1391-8	320	11975×4060×3400	57612
GM2169	Φ2100×6900	23.9	38	0-25	5.9-80	JR1392-8	380	12640×4060×3400	59612
GM2245	Φ2200×4500	23.9	27.32	0-25	5.8-52	JR139-8	280	10136×5100×3890	64800
GM2266	Φ2200×6600	23.9	39.3	0-25	6-67	JR1392-8	380	12700×5100×3890	64800
GM2436	Φ2400×3600	22.4	22.5	0-25	6.4-81.5	JR139-8	280	9770×5000×3970	63684
GM2445	Φ2400×4500	22.4	28	0-25	7.9-99.2	JR1392-8	380	10570×5000×3970	72284
GM2458	Φ2400×5800	22.4	35.5	0-25	10.2-120	JR158-8	475	11870×5000×3970	82015
GM2460	Φ2400×6000	22.4	37	0-25	10.6-125	JR158-8	475	12070×5000×3970	83680
GM2736	Φ2700×3600	21.7	28.5	0-25	15.0-115	JR1392-8	380	10575×5610×4500	88400
GM2742	Φ2700×4200	21.7	33.1	0-25	17.5-135	JR158-8	475	11175×5610×4500	90420
GM2745	Φ2700×4500	21.7	41	0-25	20-155	JR158-8	475	11991×5610×4500	92000
GM3036	Φ3000×3600	19.5	41	0-25	22-180	TDMK500-32	500	14725×6730×5400	102000
GM3070	Φ3000×7000	19.5	63.77	0-25	28-250	TDMK1250-36	1250	18125×6830×5400	157000
GM3230	Φ3200×3000	18.7	33.2	0-25	50.0-90	TDMK500-32	500	11000×7200×5700	124000
GM3236	Φ3200×3600	18.5	37.5	0-25	70.0-100	TDMK630-32	630	11600×7200×5700	139000
GM3245	Φ3200×4500	18.7	58.0	0-25	90.0-110	TDMK800-36	800	13000×7200×5700	145000
GM3290	Φ3200×9000	18.5	93.69	0-25	128-217	TDMK1400-36	1400	17800×7300×5700	171000
GM3645	Φ3600×4500	17.3	61.8	0-25	123-197	TDMK1250-36	1250	15010×7230×6323	152000
GM3690	Φ3600×9000	17.3	123.5	0-25	131-345	TDMK1600-36	1600	19710×7330×6323	227000
GM4070	Φ4000×7000	16.7	115.4	0-25	130-320	TDMK2000-32	2000	18100×7890×6730	350000
