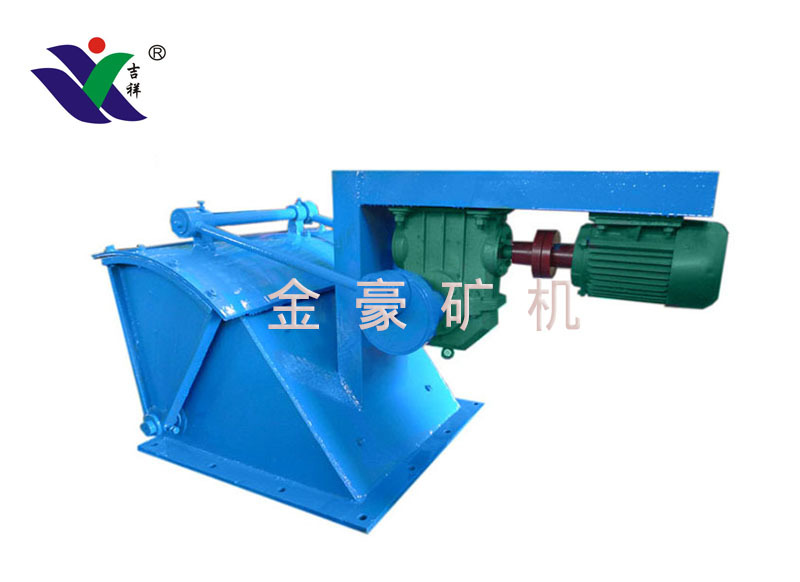

- Commodity name: Swaying Feeder
- Commodity ID: 1113782253642207232
ProductDetailsAsthefeedingequipmentofballmillandorebeltconveyor,itadjuststheorequantityintwoways:1.Adjusttheeccentricityoftheeccentricwheel.2.Adjustoredrawingwedgedisc.

Product Details

As the feeding equipment of ball mill and ore belt conveyor, it adjusts the ore quantity in two ways:

1. Adjust the eccentricity of the eccentric wheel.

2. Adjust ore drawing wedge disc.
It is made according to oredressing scale and operating system, and the motor can be changed into the speed-regulating motor.

Applicable scale: Below 200T

The main technical parameters

Model	Inlet (mm)(L×W)	Outlet(mm)(L×W)	Strokeof Eccentric Wheel(mm)	Frequency(r/min)	Max feed particle size(mm)	Feed capacity(t/h)	Motor model	Motor power(kw)	Rotating speed of the motor(r/min)	Weight(kg)	Suitable scale
300×300	300×300	300×30－125	0-90	46	30	6.5	Y80M₂-4	0.75	1390	272
400×400	400×400	400×50－130	0-170	46	35	12	Y90S-4	1.1	1400	558	200 tonnes
600×600	600×600	600×50－150	0-200	46	50	25	Y90L-4	1.5	1400	613	500 tons
800×800	800×800	800×50－300	0-260	43	70	45	Y100L₁-4	2.2	1430	726	1000 tons
