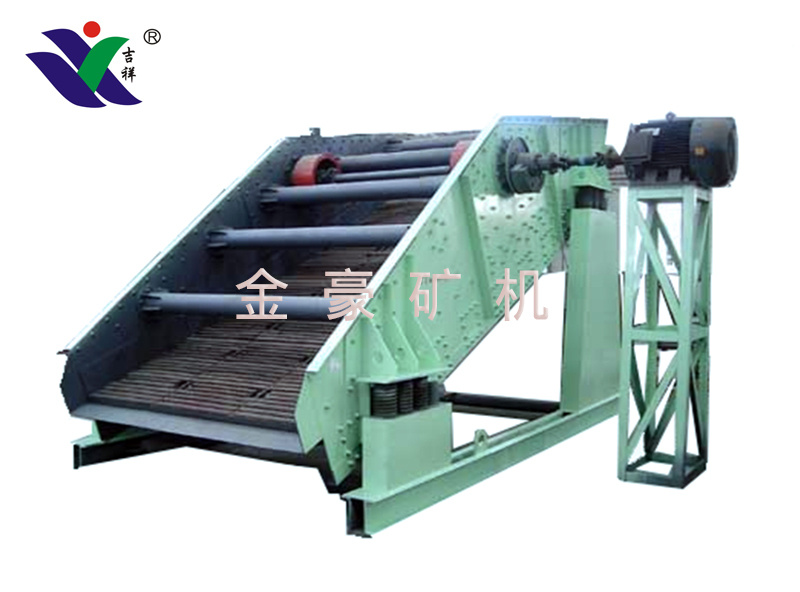

- Commodity name: YA Series Circular Vibrating Screen
- Commodity ID: 1113782247208144896
ProductDetailsActually,YAseriescircularvibratingscreenbelongstoself-centeringvibratingscreenandadoptstheinternationaladvancedring-groovedrivet,frame-typescreenboxframestructure,eccentricshaftandeccent
Product DetailsActually, YA series circular vibrating screen belongs to self-centering vibrating screen and adopts the international advanced ring-grooved rivet, frame-type screen box frame structure, eccentric shaft and eccentric block vibrator, high gear transmission system, low stress damping spring and super heavy large clearance bearings, thin oil lubrication and other advanced techniques. This type of vibrating screen shows the nature of advanced structure, good grading quality and is widely used for classification of materials in beneficiation, coal cleaning, building, chemical industry, etc. -
-
Model
Structure
Feed Particle
Size
（mm）
Proces-sing
（t/h）
Vibra-
tion time
(/minute)
Double Amplitude
（mm）
Motor
Overall Dimensions
（mm）
Weight
（kg）
Dynamic load of Each fulcrum
Max
Dynamic load
Now
Original
Layer number
Area
(m2)
Tilt Angle
Mesh Size
(mm)
Structure
Model
Power
（kw）
Inlet
（N）
Outlet
（N）
Inlet
（N）
Outlet
（N）
YA1236
Ti412
1
4.3
20°
6～50
Weaving
≤200
80～240
845
9.5
Y160M-4
11
3757×2364×2456
4905
±802
±802
±4008
±4008
2YA1236
2Ti412
2
4.3
20°
6～50
Weaving up and down
≤200
80～240
845
9.5
Y160M-4
11
3757×2364×2456
5311
±802
±802
±4008
±4008
YA1530
Ti510
1
4.5
20°
6～50
Weaving
≤200
80～240
845
9.5
Y160M-4
11
3184×2670×2280
4675
±843
±843
±4214
±4214
YA1536
Ti512
1
5.4
20°
6～50
Weaving
≤200
100～350
845
9.5
Y160M-4
11
3757×2670×2419
5137
±843
±843
±4165
±4165
2YA1536
2Ti512
2
5.4
20°
6～50
Weaving up and down
≤200
100～350
845
9.5
Y160L-4
15
3757×3715×2437
5624
±802
±802
±4008
±4008
YAH1536
TiS512
1
5.4
20°
30～150
Punching
≤400
160～650
755
9.5
Y160M-4
11
3757×2670×2437
5621
±913
±913
±4655
±4655
2YAH1536
2TiS512
2
5.4
20°
30～200
6～50
Punching on the weaving
≤400
160～650
755
11
Y160L-4
15
3757×2715×2437
6045
±913
±913
±4655
±4655
YA1542
Ti514
1
6.5
20°
6～50
Weaving
≤200
110～385
845
9.5
Y160M-4
11
4311×2670×2655
5515
±802
±802
±4008
±4008
2YA1542
2Ti514
2
6.5
20°
30～150
Weaving up and down
≤200
110～385
845
9.5
Y160L-4
15
4331×2715×2655
6098
±802
±802
±4008
±4008
YA1548
Ti516
1
7.2
20°
6～50
Weaving
≤200
120～420
845
9.5
Y160L-4
15
4904×2715×2854
5918
±847
±847
±4234
±4234
2YA1548
2Ti516
2
7.2
20°
6～150
Weaving up and down
≤200
120～420
845
9.5
Y160L-4
15
4904×2715×2861
6321
±847
±847
±4234
±4234
YAH1548
TiS516
1
7.2
20°
30～150
Punching
≤400
200～780
755
11
Y160L-4
15
4904×2715×2943
6842
±1392
±1392
±6958
±6958
2YAH1548
2TiS516
2
7.2
20°
30～150
Punching on the weaving
≤400
200～780
755
11
Y160L-4
15
4904×2715×2943
7404
±1392
±1392
±6958
±6958
YA1836
Ti612
1
6.5
20°
30～150
Weaving
≤200
140～390
845
9.5
Y16M-4
11
3757×2975×2419
5205
±892
±892
±4460
±4460
2YA1836
2Ti612
2
6.5
20°
30～150
Weaving up and down
≤200
140～390
845
9.5
Y160L-4
15
3757×2975×2419
5946
±847
±847
±4234
±4234
YAH1836
TiS612
1
6.5
20°
30～150
Punching
≤400
220～910
755
11
Y160M-4
11
3757×2975×2437
5900
±980
±980
±4900
±4900
2YAH1836
2TiS612
2
6.5
20°
30～200
6～50
Punching on the weaving
≤400
220～900
755
11
Y160L-4
15
3757×3020×2437
6353
±980
±980
±4900
±4900
YA1842
Ti612
1
7.6
20°
6～150
Weaving
≤200
140～490
845
9.5
Y160L-4
15
4331×3020×2675
5829
±847
±847
±4234
±4234
2YA1842
2Ti612
2
7.6
20°
6～150
Weaving up and down
≤200
140～490
845
9.5
Y160L-4
15
4331×3020×2675
6437
±847
±847
±4234
±4234
YAH1842
TiS614
1
7.6
20°
30～150
Punching
≤400
450～800
755
11
Y160L-4
15
4331×3020×2700
6352
±928
±928
±4640
±4640
2YAH1842
2TiS614
2
7.6
20°
30～150
Punching on the weaving
≤400
450～800
755
11
Y160L-4
15
4331×3020×2700
7037
±928
±928
±4640
±4640
YA1848
Ti616
1
8.6
20°
6～50
Weaving
≤200
150～525
845
9.5
Y160L-4
15
4904×3020×2861
6289
±847
±847
±4234
±4234
2YA1848
2Ti616
2
8.6
20°
6～50
Weaving up and down
≤200
150～525
845
9.5
Y160L-4
15
4904×3020×2861
6624
±847
±847
±4234
±4234
YAH1848
Tis616
1
8.6
20°
30～150
Punching
≤400
250～1000
755
11
Y160L-4
15
4904×3023×2943
7122
±1392
±1392
±6958
±6958
2YAH1848
2Tis616
2
8.6
20°
30～150
Punching on the weaving
≤400
250～1000
755
11
Y160L-4
15
4904×3023×2943
7740
±1392
±1392
±6958
±6958
YA2148
Ti716
1
10
20°
6～50
Weaving
≤200
180～630
748
9.5
Y180M-4
18.5
4945×3423×3515
9033
±1675
±1675
±8379
±8379
2YA2148
2Ti716
2
1
20°
6～50
Weaving up and down
≤200
180～630
748
9.5
Y180L-4
22
4945×3463×3515
10532
±1675
±1675
±8379
±8379
YAH2148
Tis716
1
10
20°
13～200
Punching
≤400
270～1200
708
11
Y180M-4
18.5
4945×3423×3501
10430
±2889
±2889
±14445
±14445
2YAH2148
2Tis716
2
10
20°
30～150
Punching on the weaving
≤400
270～1200
708
11
Y180L-4
22
4945×3423×3674
11190
±2889
±2889
±14445
±14445
YA2160
Ti720
1
12.6
20°
3～80
Weaving
≤200
230～800
748
9.5
Y180M-4
18.5
6092×3463×3674
9926
±2495
±2495
±12475
±12475
2YA2160
2Ti720
2
12.6
20°
6～50
Weaving up and down
≤200
230～800
748
9.5
Y180L-4
22
6116×3619×3849
11249
±2495
±2495
±12475
±12475
YAH2160
Tis720
1
12.6
20°
30～150
Punching
≤400
350～1500
708
11
Y200L-4
30
6116×3619×3849
12490
±2889
±2889
±14445
±14445
2YAH2160
2Tis720
2
12.6
20°
30～150
Punching on the weaving
≤400
350～1500
708
11
Y200L-4
30
6116×3619×3849
13858
±2889
±2889
±14445
±14445
YA2448
Ti816
1
11.5
20°
6～50
Weaving
≤200
200～700
748
9.5
Y180M-4
18.5
4945×3729×3473
9834
±2495
±2495
±12475
±12475
YAH2448
Tis816
1
11.5
20°
6～50
Punching
≤400
310～1300
708
11
Y200L-4
30
4970×3925×3638
11830
±2889
±2889
±14445
±14445
2YAH2448
2Tis816
2
11.5
20°
30～150
Punching on the weaving
≤400
310～1300
708
11
Y200L-4
30
4970×3925×3638
13012
±2889
±2889
±14445
±14445
YA2460
Ti820
1
14.4
20°
6～50
Weaving
≤200
260～780
748
9.5
Y200L-4
30
6091×3925×3850
12240
±2495
±2495
±12475
±12475
2YA2460
2Ti820
2
14.4
20°
6～50
Weaving up and down
≤200
260～780
748
9.5
Y200L-4
30
6091×3925×3850
13583
±2495
±2495
±12475
±12475
YAH2460
Tis820
1
14.4
20°
30～150
Punching
≤400
400～1700
708
11
Y200L-4
30
6091×3925×3846
13096
±2889
±2889
±14445
±14445
2YAH2460
2Tis820
2
14.4
20°
30～150
Punching on the weaving
≤400
400～1700
708
11
Y200L-4
30
6091×3925×3846
14455
±2889
±2889
±14445
±14445
