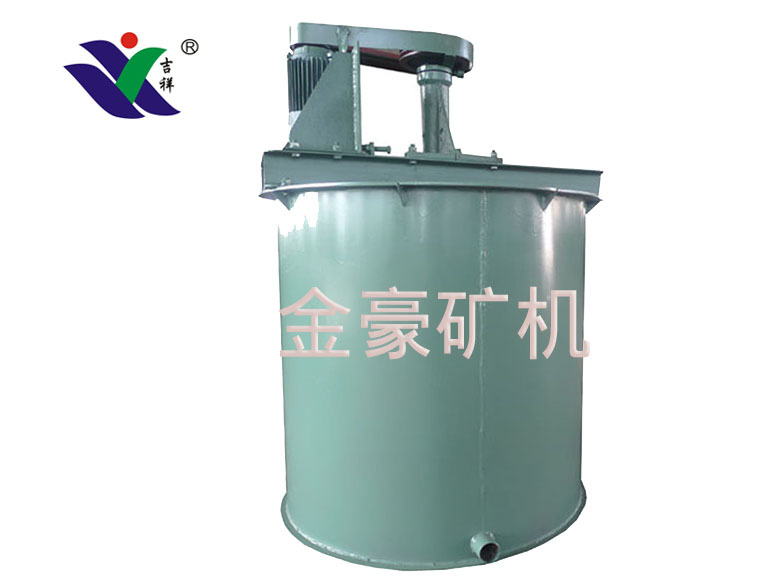

- Commodity name: RJ Single Impeller Agitation Tank
- Commodity ID: 1113782188936679424
ProductDetailsRemarks:1.Rubberimpellerandnylonimpellercanbemade,pleasenoteit;2.Therelativepositionofmotor,feedingportanddischargeportcanbeset,andrelevantpartsareassembledinfieldinstallationgenerally.3

Product Details

Remarks: 1. Rubber impeller and nylon impeller can be made, please note it;

2. The relative position of motor, feeding port and discharge port can be set, and relevant parts are assembled in field installation generally.

3. It has cone or flat bottom, and the cone bottom needs clear indication.

The main technical parameters

Specification and model	Inner dimension of trough（mm）		Effective volumem³）	Stirrer		Motor		Overall dimensions（mm）		Weight（kg）
Specification and model	Diameter	Height	Effective volumem³）	Diameter（mm）	Speed（r/min）	Model	Power（kw）	Length	Height	Weight（kg）
RJ05	500	500	0.078	150	690	Y80M₂-4	0.75	720	874	110
RJ07	750	750	0.26	240	530	Y90L-4	1.5	939	1241	228
RJ10	1000	1000	0.58	240	530	Y90L-4	1.5	1080	1665	350
RJ12	1200	1200	1.14	400	320	Y132S-6	3	1540	1858	765
RJ15	1500	1500	2.2	400	320	Y132S-6	3	1690	2171	1360
RJ20	2000	2000	5.5	550	230	Y132M₂-6	5.5	2381	3046	1655
RJ25	2500	2500	11	625	230	Y160M-6	7.5	2881	3546	2766
RJ30	3000	3000	19.1	900	210	Y225S-8	18.5	3266	4325	4296
